Rules and instructions for

SAHA

Konemiehentie 3, 02150 Espoo

Notice of liability

By using KY's premises, the user responsible for the reservation agrees to be bound by the rules, regulations and guidelines described on this page.

Operating against or failing to comply with these rules, regulations and guidelines will result in sanctions at the discretion of the KY Executive Director, ranging from monetary penalties (50–300€, excl. potential damages) to the ban from using KY's premises.

Failure to read through the rules, regulations and guidelines does not exempt the user of possible sanctions.

Contents

1. Premises' specifications

General:

  • The Saha premises consist of an outdoor terrace with a roof, a lobby area with a direct access to two separate bathrooms and an accessible toilet, the main party space with a fixed stage, a backstage area with its own toilet and a kitchen.
  • Total floor area indoors ~400m2 and ~90m2 on the outside terrace
  • 160 people allowed simultaneously at the premises
  • All spaces are fully accessible except for the stage

Furniture and tableware:

  • 140 sets of tableware
  • 120 wooden chairs
  • 62 black plastic folding chairs
  • 28 folding tables measuring 140x70cm
  • Two sets of ladders for e.g. decorating

Kitchen:

  • Two industrial refrigerators
  • Industrial stove
  • Industrial dishwasher
  • Industrial coffee maker
  • Industrial microwave oven
  • Instructions for the dish washer, oven and coffee maker are in the kitchen
  • The microwave oven is a lot more powerful than a regular one (1600 W vs 800 W)

Toilets:

  • Lobby: Two gendered toilets and one accessible toilet
  • Terrace: Six toilets in heated indoor area separate from the main building
  • Backstage: One toilet

Showtech:

  • A fixed stage
  • PA system with a mixer and microphones
  • DMX-controlled party lights
  • Two projectors, one pointing at the stage and the other towards a wall on the right of the stage

2. User's responsibilities

Before the event day

  • Fill out the extended time form if you wish to extend your reservation to end later than 01:00
  • Electronically managed doors
    • Request the electronically locked doors to be scheduled unlocked at any point of your reservation during the service hours from the service advisors at the KY Office
    • Electronically managed doors require a passcode along with the electronical key every day after 17 o'clock. The passcode is provided along with the key by service advisors.

Before the event

  • Carefully check the premises upon arrival
  • Fill and submit the checklist accordingly
  • Report deficiencies and damages by email to service@ky.fi
  • Be mindful of the fixed showtech equipment when attaching decorations to e.g. the ceiling to avoid damaging the equipment, risking injury or posing a fire hazard. The equipment is heavy and gets warm, so attaching decorations or covering them is forbidden.

During the event

  • Operate lawfully and according to KY's Code of Conduct and good manners
  • Respect the maximum capacity of 160 persons at a time
  • Observe the operating time (premises empty and cleaned up by 01:00)
  • Keep the noise level reasonable throughout the reservation
  • Use and handle the equipment, fittings, fixed structures and furniture carefully, ensuring their good condition at the end of their reservation
  • Ensure adequate facilities for recycling by providing separate containers for at least cans and bottles, metals, biodegradables, cardboard, paper, plastics and burnable waste
  • Keep the storage space under the stage and showtech storage room in order (see photos in the Storages section)
  • Ensure that the maintenance areas and fire safety passages remain clear at all times
  • If something is damaged during your reservation, notify the KY Office without unreasonable delay at service@ky.fi. In case of a more serious damage to the property (e.g. a broken window or water damage), contact the maintenance company Lassila & Tikanoja at +358 10 636 7000 immediately and notify the KY Office of the situation at service@ky.fi. Unreported damages result in a 100€ sanction in addition to the cost of fixing the damages.
  • In case someone throws up at the premises during the reservation, clean it up yourselves with sprayable cleaner, towels and deodorizer from the cleaning cupboard at the backstage area. Additionally, notify the KY Office at service@ky.fi for disinfection. Unreported incidents result in a 50-300€ sanction for the cleaning and disinfection.
  • In case of a risk of injury to people or more serious emergencies, such as fires, call 112.

After the event

  • Clean up trash and tidy up the premises' general appearance
  • Dispose of trash, cans and bottles appropriately, recycling everything possible according to the instructions below
  • Wash dirty dishes, dry them and return them to their storage
  • Lay chairs and tables neatly back to their storage under the stage
  • Take broken chairs and tables to the shed in front of Saha's backdoor
  • Move the furniture in the terrace away from the walls to avoid water damage
  • Take all your own equipment, decorations and other stuff with you (including all lost-and-founds that belong at Espilä in the lobby behind TuoMela)
  • Tidy up the showtech equipment storage according to the instructions in the Storages section
  • Turn off all lights, including the party lights
  • Ensure that all doors are locked when you leave
  • Return keys to the return box at the front door of Espilä
  • Report any missing or broken tech equipment to the IT Coordinator
  • Report any missing or broken other equipment to the Administrative Coordinator

It is forbidden to...

  • ...sell alcoholic beverages
  • ...smoke indoors or outside the designated smoking area
  • ...jam the doors open with e.g. chairs, bricks or pieces of wood (results in the fire alarm going off)
  • ...use silk paper, duct tape, packing tape, zip ties or confetti in decorations
  • ...light fires or candles indoors or outdoors close to the walls
  • ...use the hazer/smoke machine indoors without permission from the KY Office
  • ...make changes to the connections of the sound, light, or other electronic systems

3. Audio & lights

Regular lights

  • Saha has a centrally controlled lighting system with touch-screen control panels on the walls (see images below)
  • The control panels have four lighting presets plus an off-setting
  • The control panel in the main hall also switches the setting for the backstage area, but the control panel in the backstage area controls the backstage separately
  • Turn off all the lights at the end of your reservation

WiFi and mini PC

  • Saha has a WiFi system that can be used to stream audio or video from your device to Saha's systems or for internet access. Please note that the capacity of the WiFi is limited so use it only for necessary devices to maintain good performance.
    • WiFi name: KY Saha
    • WiFi password: SAHAsana
  • The streaming works via Chromecast. You will get the best streaming performance using Chrome browser, Google Home app or other compatible apps. You can find more instructions online.
  • There is a mini PC at the speaker's booth. There is power button on the PC to turn it on. The PC is connected to the display, keyboard and mouse at the booth. You can use the PC to play audio, video or presentation for example. Refer to Audio or Projectors sections below for more instructions. Turn the PC off at the end of your reservation

Audio

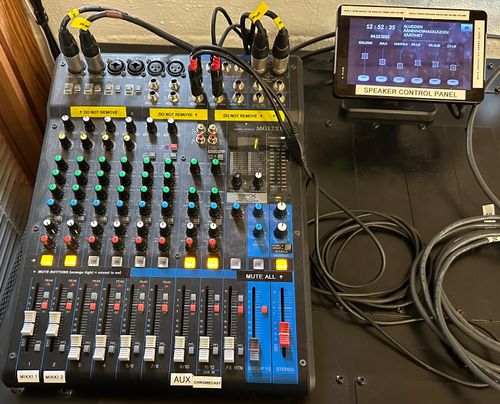

  • Saha has a stationary PA-system connected to a mixer in the corner of the stage.
  • The mixer's power switch is in the back of the mixer on the right side
  • Letting sound through to the speakers:

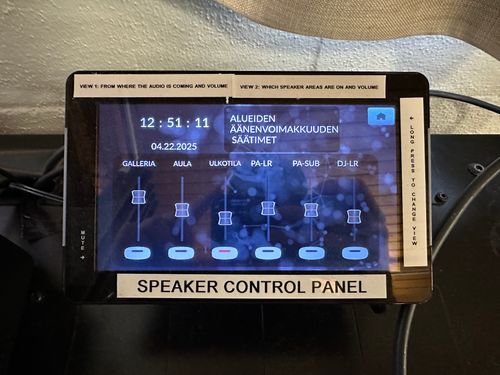

    • On the touchscreen speaker control panel: make sure that the speakers you want to use are not muted. Here you can also control volume between different zones
    • On the mixer: make sure the volume slider has been moved up for the device you want to hear (e.g. the microphone volume sliders) and make sure that the channel you want to hear or main channel is not muted (ORANGE LIGHT = sound is on)
    • Move the MAIN MIX volume sliders up on the mixer (red slider on the right side)
  • Using microphones:
    • KY's mics should already be connected, but if not or you're using other mics, connect microphone receivers to the mixer with an XLR cable using the connectors at the top row of the mixer (see first image below)
    • Turn on the microphone you want to use. The Sennheiser microphone has a small red power button at the end/bottom and the Shure microphone has power button on the side. Remember to bring your own AA batteries for the mics. You can change batteries for both mics by twisting the base of the mic.
    • Move their respective volume sliders up (like in first image below) and refer to the Letting sound through to the speakers -section above
  • Playing sound from your device or the stage mini PC:
    • You can use the mixers AUX cable on top of the tech cabinet to play sound or you can stream audio to Saha's Chromecast. Note that you need to connect to KY Saha WiFi to make the streaming work
    • There is no fixed connection between the stage mini PC and the mixer, so you need to use one of the above methods
    • Move AUX or Chromecast slider up and refer to the Letting sound through to the speakers -section above
  • Playing sound from DJ corner:

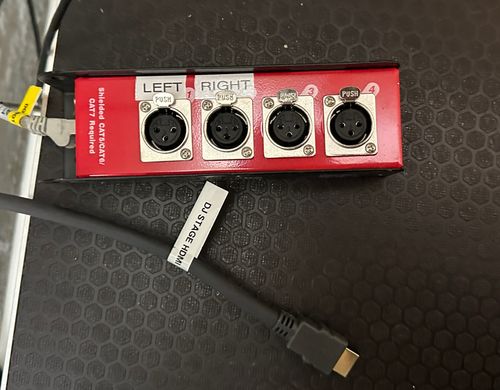

    • There is XLR audio inputs at the DJ corner. Please note that these connections go directly to the speaker system and not to the mixer, so it is recommended to use separate mixer here. However, the touchscreen speaker control panel at the stage can be used to control volumes.
  • After your reservation:
    • Move all volume sliders down to zero
    • Turn off the mixer from the switch in the back of the mixer (third image below)

Party lights

  • Saha has a stationary DMX-controlled party light system

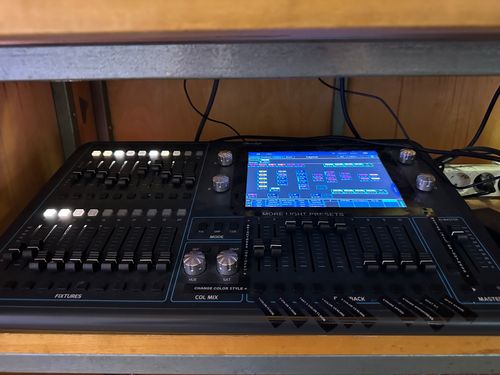

  • The controller for these lights is the ChamSys QuickQ 20 console at the speaker's booth
  • Turn on the lights by sliding the Grand Master slide on the right side of the console. You can select lightning presets from the small white box at the speaker's booth or at the DJ corner. You can find more lightning options from the console, but there is quite steep learning curve. Google and Youtube can be helpful for finding tutorials.
  • Turn off all the party lights at the end of your reservation by sliding the Grand Master down

Projectors

  • Saha has two stationary projectors in the main area, one facing the stage and another facing wall next to the door leading to the cloakroom

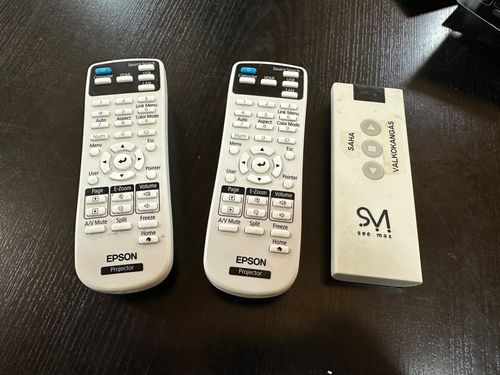

  • The projectors can be turned on or off using the remote control

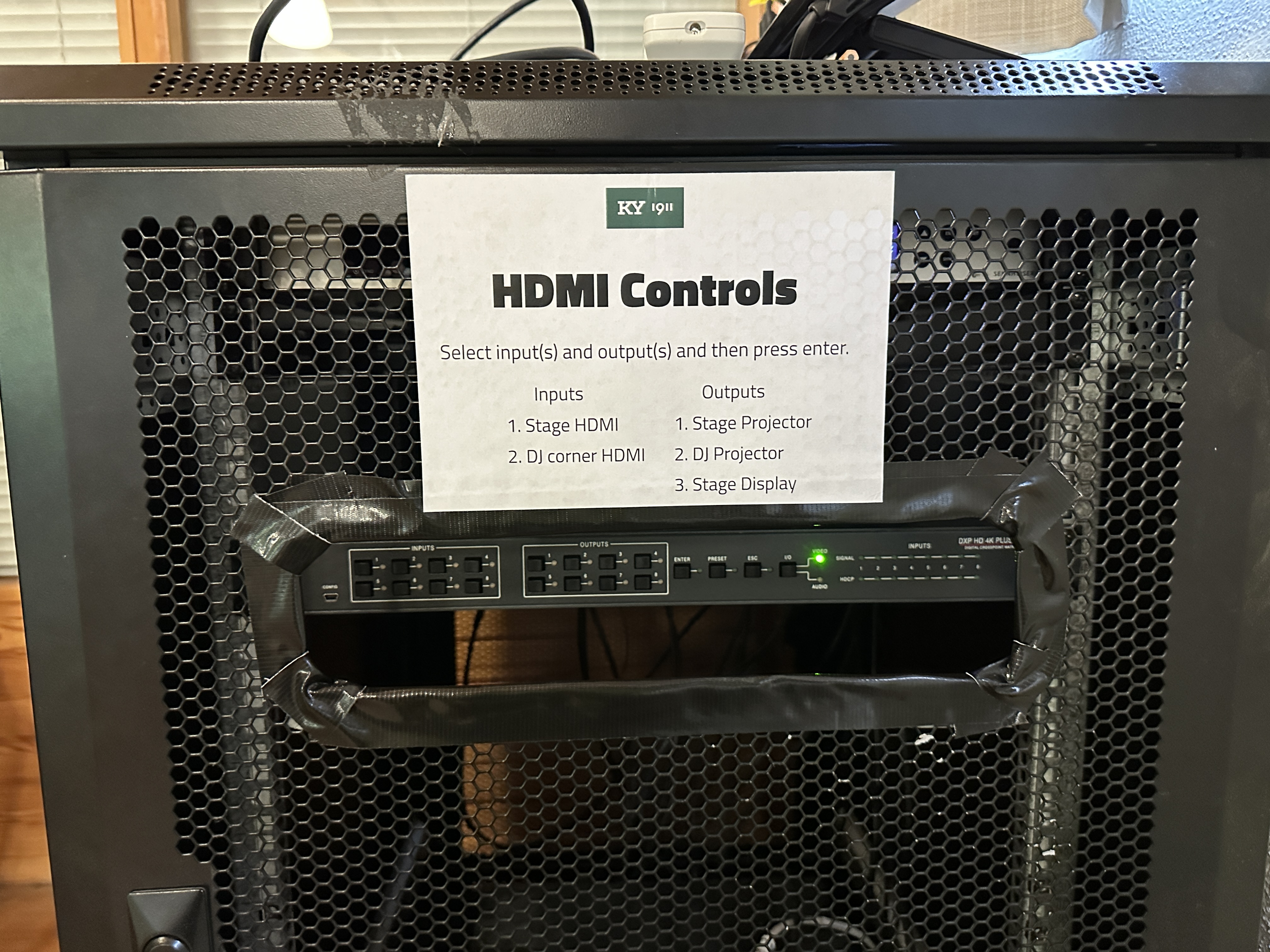

  • You can control video outputs (the 2 projectors) and inputs from the tech cabinet control panel following the instruction label. There are following inputs available:
    • Stage HDMI cable on top of the tech cabinet
    • DJ corner HDMI cable
    • Chromecast. Note that you need to be connected to KY Saha WiFi to be able to stream to the Chromecast
  • The projector screen behind the stage is controlled with a remote labeled "valkokangas"
  • Turn off the projectors using the tablet at the end of your reservation

4. Storages

Table, chair & ladder storage

  • The storage is located in the drawers under the stage

Showtech storage room

  • The storage room for showtech equipment is located next to the stage on stage level
  • The storage room has shelves on two walls:

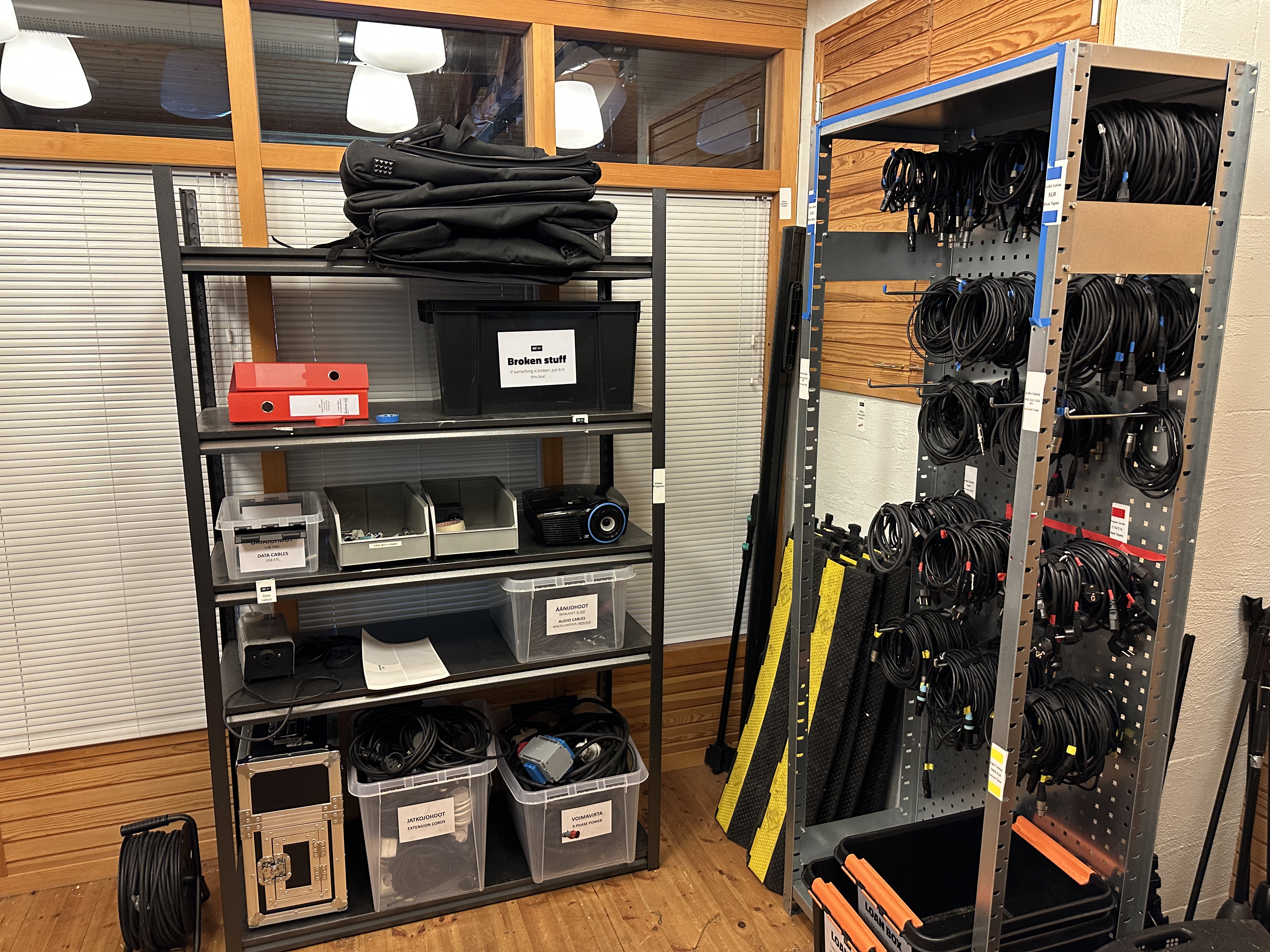

    • The shelf on the left (first image below) is reserved for accessories, such as signal cables, data cables, batteries, space heaters and extension cords separately or in boxes labeled accordingly

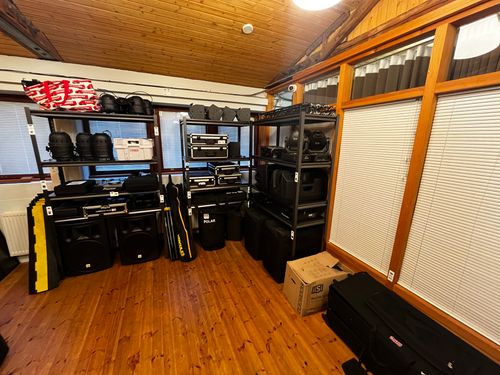

    • The shelf on the right (second image below) is reserved for KY's reservable equipment, such as speakers, LED lightbars and microphones
  • Put all equipment back to it's marked place and leave the room to at least in the same condition that it was in the beginning of your reservation

5. Waste disposal

  • The waste disposal and recycling bins for Saha are located approximately 100 meters from the backdoor of Saha towards the Undergraduate Centre, inside the courtyard of Nanotalo at Puumiehenkuja 2 (see aerial photo below)
